BEOSOUND
VINTAGE 01

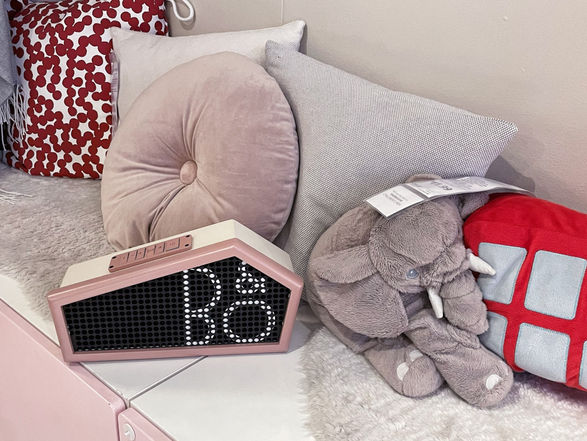

BEOSOUND VINTAGE 01 is a compact home speaker that is both bulky and adorable, and combines modern and vintage aesthetics.
It is suitable for any space and delivers full-range, wide sound that fills every corner of the room.
Year
Duration
Course
Skills
Project Brief
2023 Spring
14 Weeks
Product Prototype Process 2
Product Analysis | Prototype | Form Development | 2D to 3D Design Translation | Standard Shop Methods
First disassemble an existing SONY speaker for product and internal structure analysis. Then, inspired by BANG & OLUFSEN, redesign and make a personal speaker and install the parts removed from the original SONY speaker into it.
DISASSEMBLE
ANALYZE
REDESIGN
ASSEMBLE
COME AND TAKE A LOOK AT
THE ENTIRE PROCESS OF MY DESIGN
BRAND RESEARCH
Color Scheme
Logo Design
Geometric
Forms
Materials
ENVIRONMENT | AMBIENCE | MOOD
IDEATION SKETCHES
 |  |  |  |  |
|---|
EXISTING SPEAKER ANALYSIS
Disassemble it
Measure & analyze
the internal components
Analyze
the internal structure
Disassembling and analyzing the original speaker let me know the components inside the speaker, how they were put together, how the speaker worked. This helped me to better design my speaker afterwards.
REDESIGN SPEAKER
Figure out
the internal structure
Refine my prototypes every week
Build the interior and exterior structures
Finalize it
Prepare for final assembly
Assembly completed
Presentation time
Don't want to leave?
Then come back to see my working process!
Mill
Drill
Test
Fit
Assemble
Fix
Router
Ready for painting
Sand
Metal Glaze
Laser Cut
Shake & Stir Primer
Paint
Bondo
Mask
Black Coat
Paint
EVA Foam
